LVGL Example

The display driver used in this routine is SSD1306,and the size is 128 * 64.I2C communication mode。

LVGL config

LVGL configuration is unified in the lv_conf.h file. You can configure the model, size and drive pin of the display,

Model configuration

#define LV_DISPLAY_SSD1306

I2C pin configuration

#define OLED_IIC_SCL 12
#define OLED_IIC_SDA 3

Display direction configuration

 #define LV_DISPLAY_ORIENTATION_LANDSCAPE
// #define LV_DISPLAY_ORIENTATION_LANDSCAPE_INVERTED

  • LV_DISPLAY_ORIENTATION_LANDSCAPE:Normal display

  • LV_DISPLAY_ORIENTATION_LANDSCAPE_INVERTED: Mirror Display

#define MY_DISP_HOR_RES    128
#define MY_DISP_VER_RES    64
#define LV_VER_RES_MAX     10

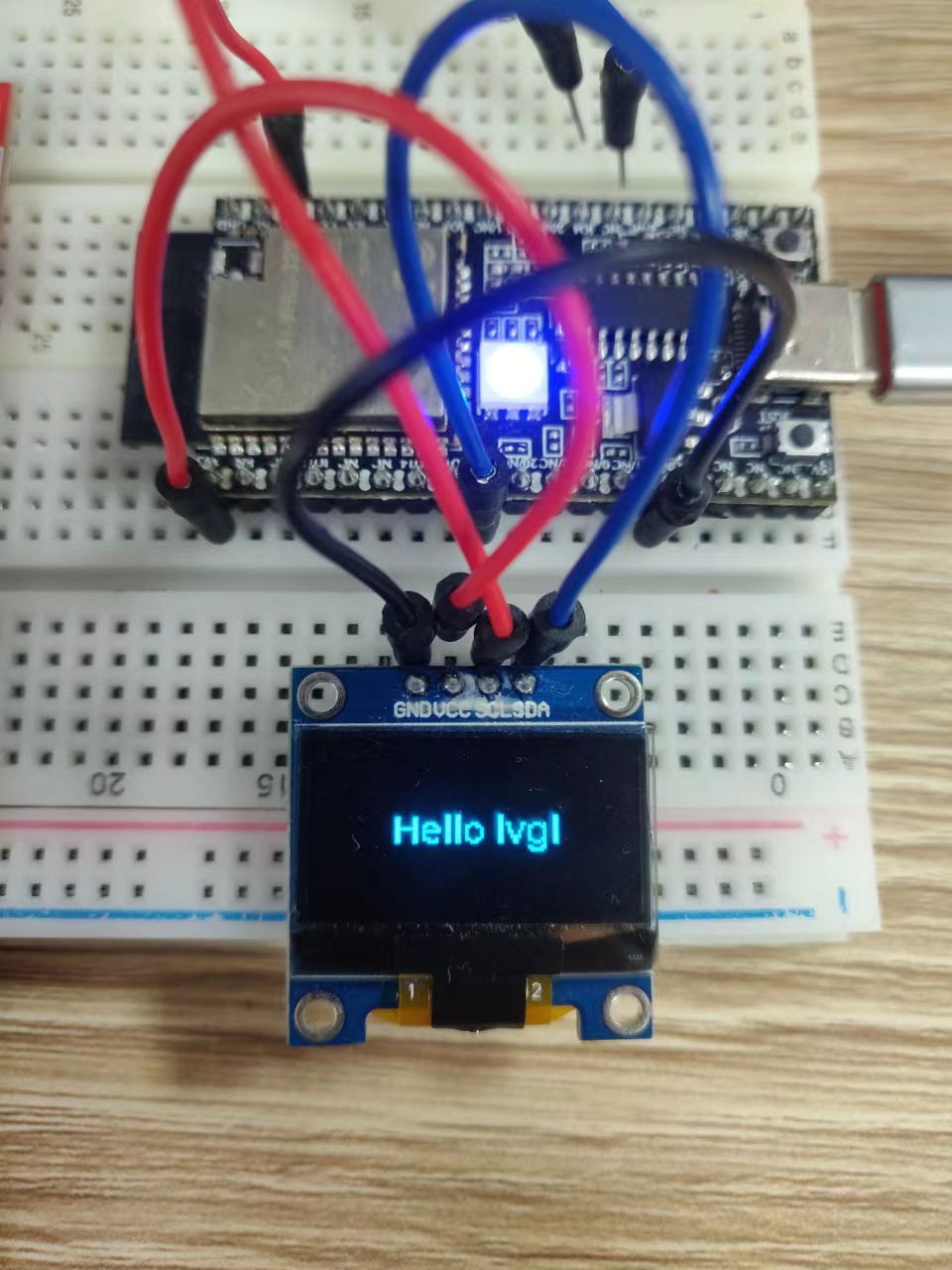

../../../../_images/ssd1306.jpg

Troubleshooting

For any technical queries, please open an [issue](https://github.com/Ai-Thinker-Open/Ai-Thinker-WB2/issues) on GitHub. We will get back to you soon.
